M60DLSW Dual "Line Sagging" Winch Attachment

FEATURES

  • Hydraulic Pilot Controls allow precise, simultaneous control of the winches and include a built-in 2-speed function switch.
  • Controls also include toggle switches with safety guards for the free spool functions.
  • Attachment pins directly to the dozer’s rear pin-up mount.
  • System interconnects to the dozer’s existing hydraulic system.



WINCH SPECIFICATIONS

  • Type: Hydraulic pilot controls
  • Wire Rope: 3/4″ dia x 300′ long (19 mm dia x 91 m long)
  • Drum Capacity: 388′ long of 3/4 diameter rope (118 m long x 19 mm dia)
  • Total Attachment Weight: 6,000 lb (2,722 kg)



WINCH PERFORMANCE

  • Line Pull, First Layer: High speed 22,440 (10,179 kg) / Low speed 44,870 lb (20,353 kg) *
  • Line Pull, Full Drum: High speed 14,960 lb (6,786 kg) / Low speed 29,910 lb (13,566 kg) *
  • Hi/Lo Line Speed First Layer: 42 fpm/21 fpm (12.8 mpm/6.4 mpm) *
  • Hi/Lo Line Speed, Full Drum: 63 fpm/31 fpm (19.2 mpm/9.4 mpm) *

* line pull and speed are based on hydraulic pump delivery of 37 gpm (140 Lpm) at 2,000 psi (13,789 kPa) with 3/4″ wire rope. Performance will vary with different hydraulic systems.



DOWNLOAD SPEC SHEET

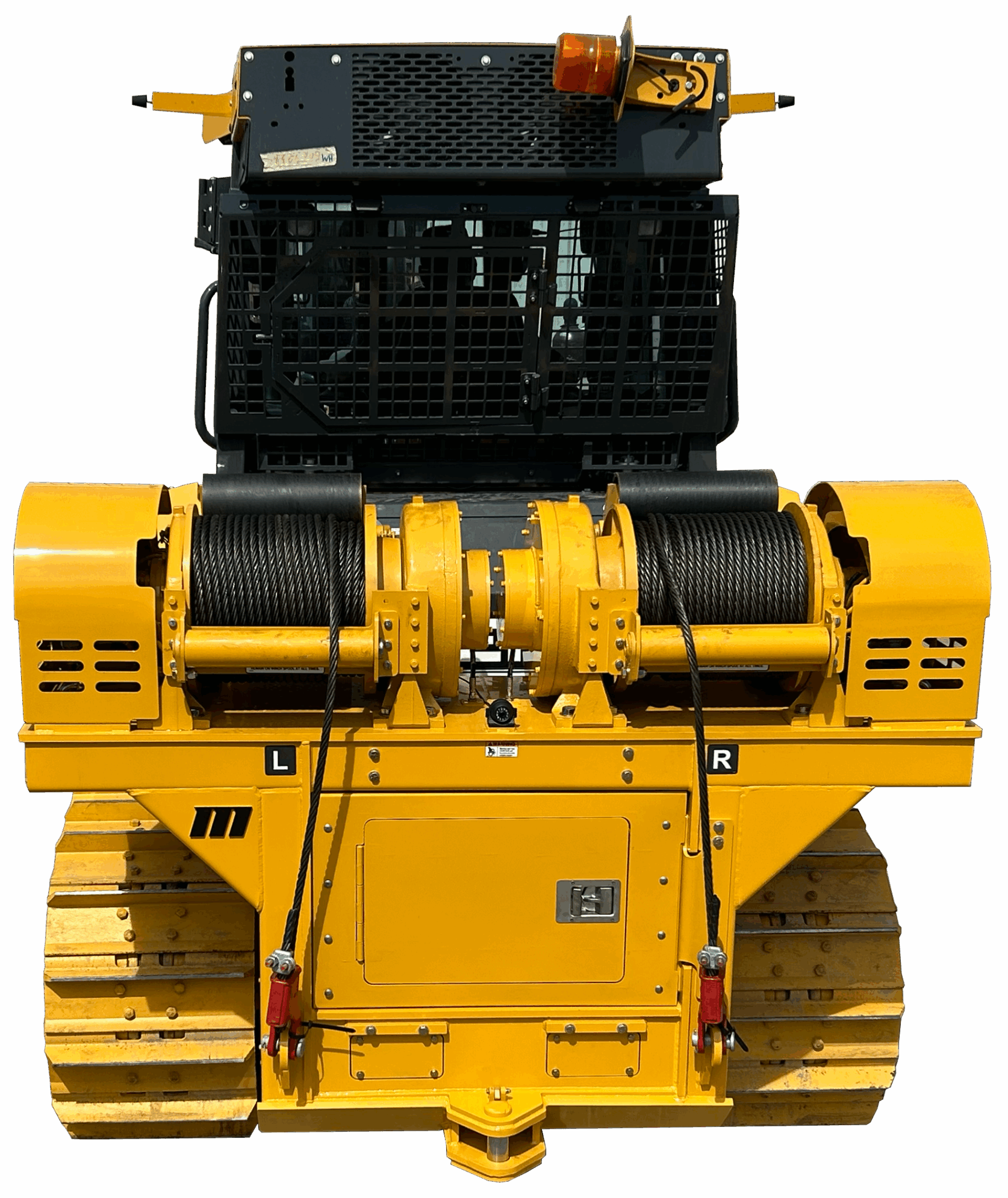

M60 DLSW shown on CAT D6T VP LGP. Other models are available upon request.
